Common specifications of all cabinet-type aspirators with induction motor
- Motor protected by a thermal device. Output power 0.4 kW – 3.1 A
- Maximum flow 1250 l/min.
- Maximum operating head for continuous service 1300 mm H2O.
- Three electronic probes for the secrection maximum level control.
___________

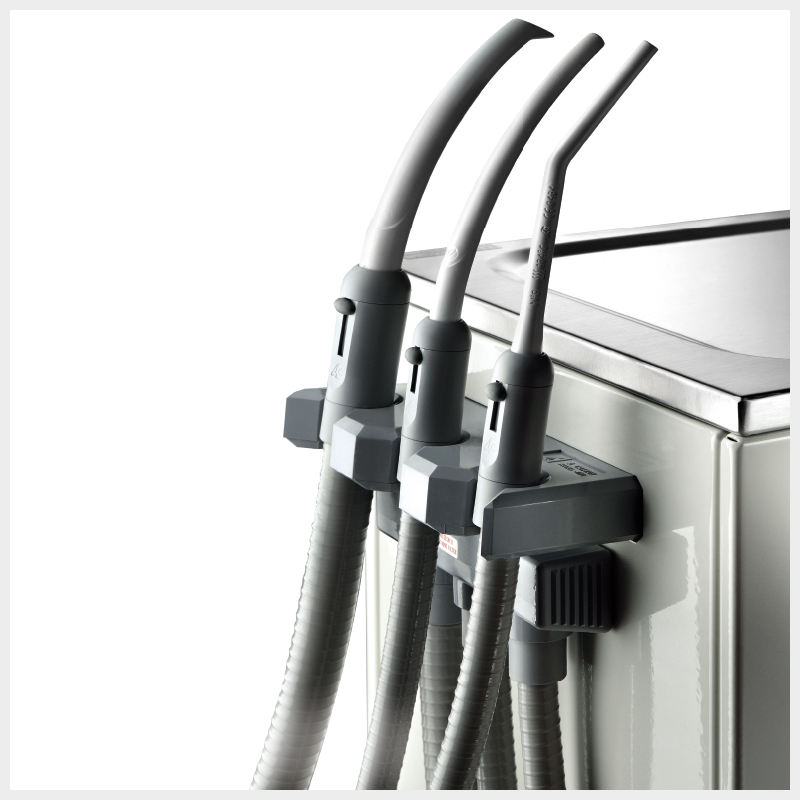

- Mono-Jet units are not equipped with tip support which are listed at page 36.
- Different voltages and frequencies available on request.
- Sound pressure level tested according to ISO regulation 3746-1979 (E).
___________
- Parameters: r =1.5 – background noise < 38 dB (A) – instrument: Brüel & Kjær type 2232.
Medical device IIa class.
Canister to be emptied manually,
capacity 4 litres.
Sound pressure level with one open
plastic tip no.10: 58 dB (A)
Sound pressure level with one open
plastic tip no.20: 62 dB (A)
W= 530 mm D= 420 mm H= 760 mm
Net Weight= 32 kg (Gross Weight= 41 kg)
Medical device IIa class.
Automatic drainage by means of a pump.
Sound pressure level with one open
plastic tip no.10: 58 dB (A)
Sound pressure level with one open
plastic tip no.20: 62 dB (A)
W= 530 mm D= 420 mm H= 760 mm
Net Weight= 34 kg (Gross Weight= 43 kg)
Medical device IIa class.
Automatic drainage by means of a pump
and water to tumbler.
Sound pressure level with one open
plastic tip no.10: 58 dB (A)
Sound pressure level with one open
plastic tip no.20: 62 dB (A)
W= 530 mm D= 420 mm H= 760 mm
Net Weight= 36 kg (Gross Weight= 47 kg)
Medical device IIa class.
Automatic drainage by means of a pump,
water to tumbler, spittoon assembled
on stainless steel movable arm, tap for
spittoon rinsing.
Sound pressure level with one open
plastic tip no.10: 58 dB (A)
Sound pressure level with one open
plastic tip no.20: 62 dB (A)
W= 590 mm D= 560 mm H= 760 mm
Net Weight= 39 kg (Gross Weight= 50 kg)
Square-edged cabinet, automatic drainage by
means of a pump, 24 V
controls.
Sound pressure level 59 dB (A).
W= 520 mm D= 285 mm H= 440 mm
Net Weight= 27 kg (Gross Weight= 33 kg)
Round-edged cabinet, automatic
drainage by means of a pump, 24 V
controls.
Sound pressure level 59 dB (A).
W= 520 mm D= 285 mm H= 440 mm
Net Weight= 27 kg (Gross Weight= 33 kg)
